Description

Sometimes we all need to recharge our batteries whether we are camping; wanting to go off the grid; or are just looking to power some appliances. Our Renogy 100W Monocrystalline Bundle comes with components that you will need to expand on a system you may already have; or just need some items to complete your system. Our 100W Monocrystalline solar panel; 9in Mc4 Adaptor Kit; and 10A PWM charge controller are included. Keep in mind that this kit allows for the charge controller to be close to the solar panel so depending on your situation; you may still need an extension cable or longer wiring. This bundle kit can be the perfect option for creating an off-grid solar system.

If you have any questions regarding this product; please email submit a case.

Key Features

Efficient

High solar cell efficiency : Monocrystalline 18.4%
Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments

Reliable

EL tested solar modules; no hot-spot heating guaranteed
Corrosion-resistant aluminum frame for extended outdoor use; allowing the panels to last for decades
TPT back sheet ensures smooth performance over a long period of time
IP65 rated junction box provides complete protection against environmental particles and low pressure water jets

Safe

The Renogy Wanderer is equipped with multiple electronic protections; overcharging; overload; short-circuit and reversed polarity
Pre-drilled holes on the back of the panel allow for fast and secure mounting

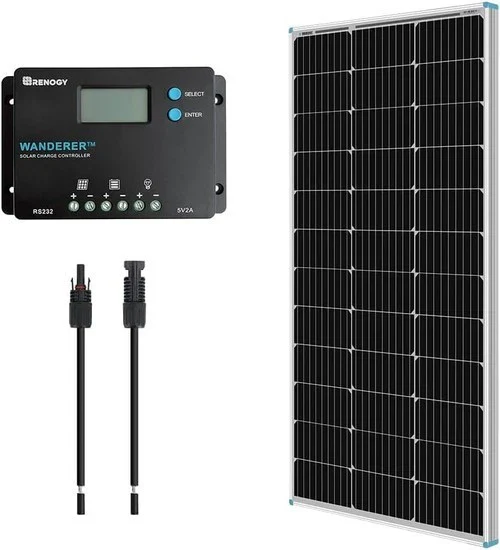

Package Includes

Renogy 100W Solar Panel(Compact design) 1 x	Renogy 10A Wanderer Li Charge Controller 1 x
Renogy 9In 12AWG MC4 Adaptor Kit (A pair) 1 x

Renogy 100W Monocrystalline Solar Panel	The Renogy Wanderer - 10A PWM Negative-Ground Charge Controller
Maximum Power: 100W	Nominal Voltage: 12V/24V Auto Recognition
Maximum System Voltage:600V DC (UL)	Rated Charge Current: 10A
Optimum Operating Voltage (Vmp): 18.6V	Max. PV Input Voltage: 50 VDC
Optimum Operating Current (Imp): 5.38A	Max Gauge Size: Up to 12AWG
Open-Circuit Voltage (Voc): 22.3V
Short-Circuit Current (Isc): 5.86A
Dimensions: 1076x509x35mm / 42.4x20.0x1.38in

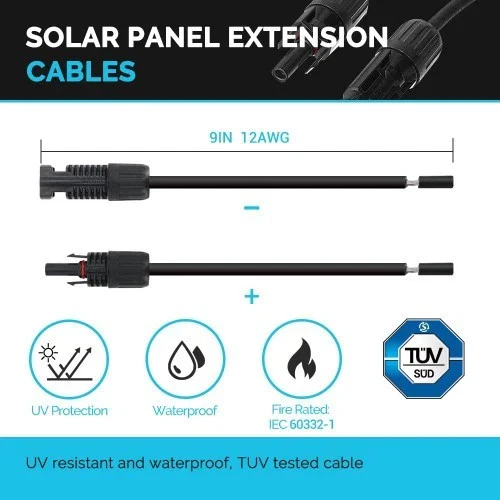

Renogy Adaptor Kit (Set)
Length: 9Inch
AWG: 12
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

Warranty Information

Panels	25-year transferable power output warranty: 5 year/95% efficiency rate; 10 year/90% efficiency rate; 25-year/80% efficiency rate 5-year material and workmanship warranty
Accessories	1-year material warranty

Certification

Solar Kits

100 Watts 12 Volts Solar Bundle Kits with Wanderer 10 Amp Charge Controller
