175 Watt 12 Volt Flexible Monocrystalline Solar Panel
KEY FEATURES
Lightweight, thin, and capable of flexing up to 248 degrees, this Renogy 175W Flexible Solar Panel is your perfect solution for an off-grid journey! Featuring an IP68 junction box and IP67 solar connector, it offers excellent weatherproof performance, making it perfect for marine and outdoor use. Weighing just 6.2 lbs, this flexible solar panel is 70% lighter than its rigid counterpart, making it an ideal choice for load-sensitive structures and uneven surfaces. Perfect for RVs, campers, boats, and more. If you want to maintain the speed of your vehicles and enjoy off-grid power freedom, this is your best solution.
Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel. Grommets should only be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.
This 175 Watt panel can flex up to 248 degrees, perfect for installation on curved surfaces, such as on teardrop trailers or boats.

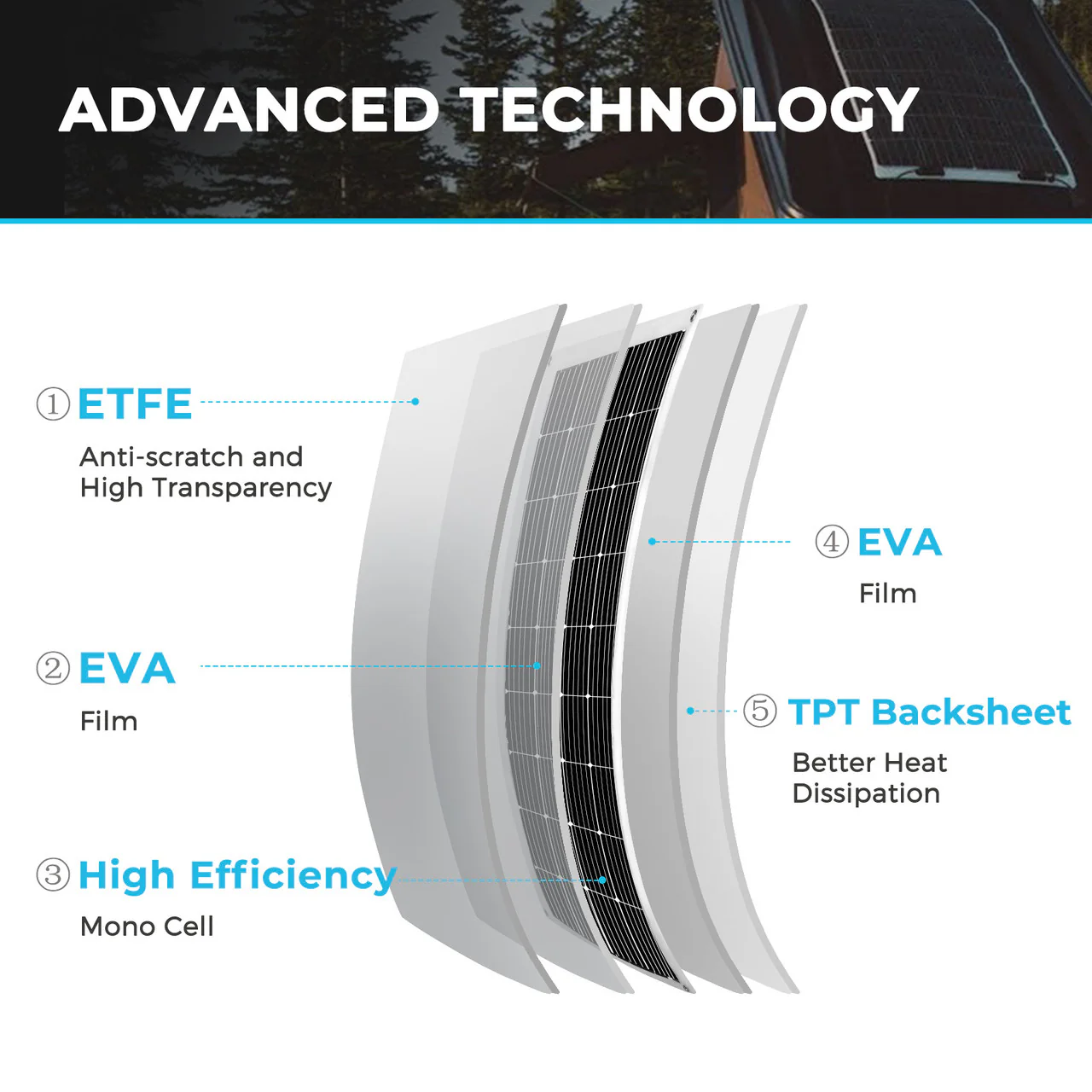

Well laminated with ETFE material, provide thin but durable protection. Anti-scratch and durable ETFE film can protect the cell for outdoor use. High transparency ensures a higher conversion rate.

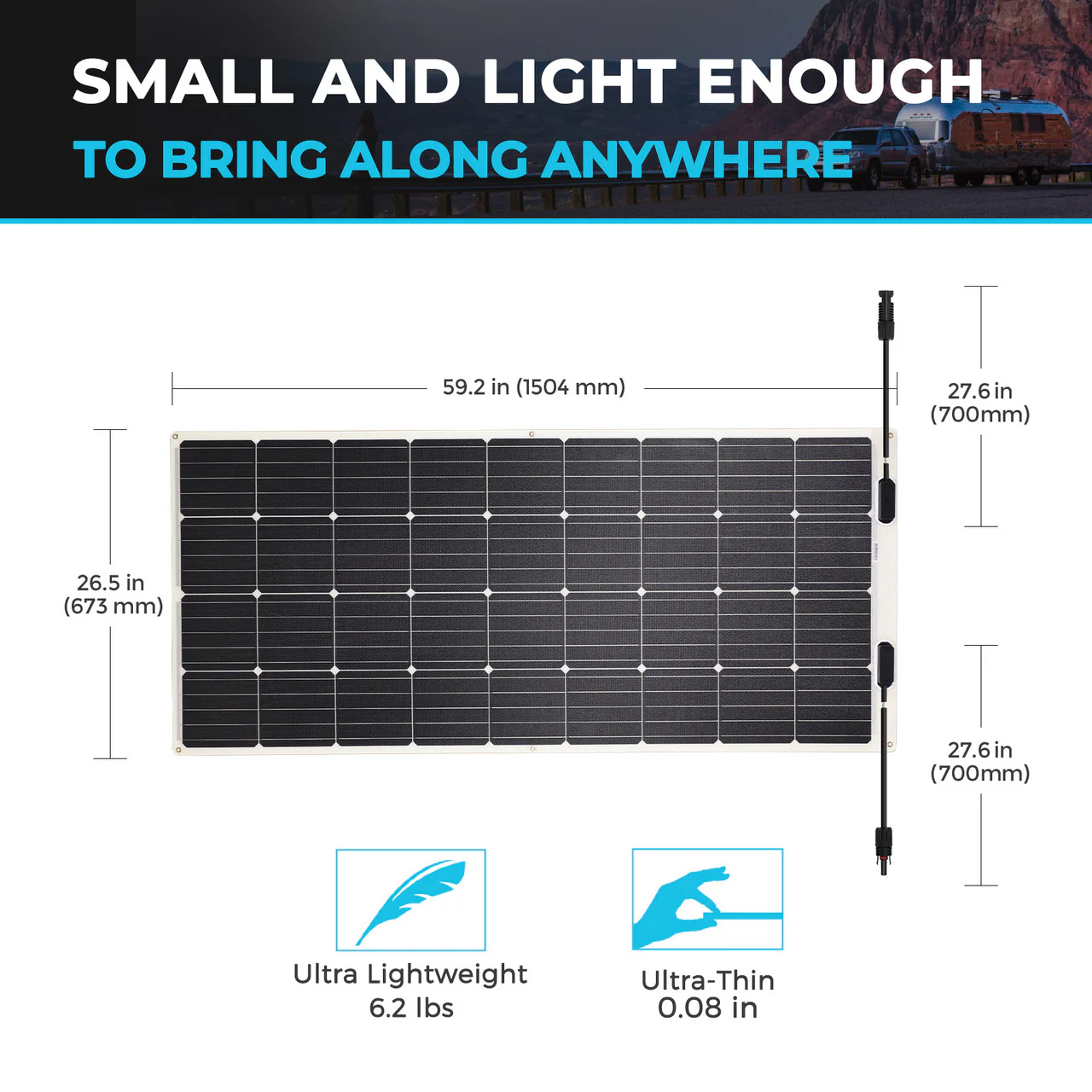

Light as 6.2 pounds and thin as 0.08 inches, it is an ideal choice for load-sensitive structures and uneven surface mounting.

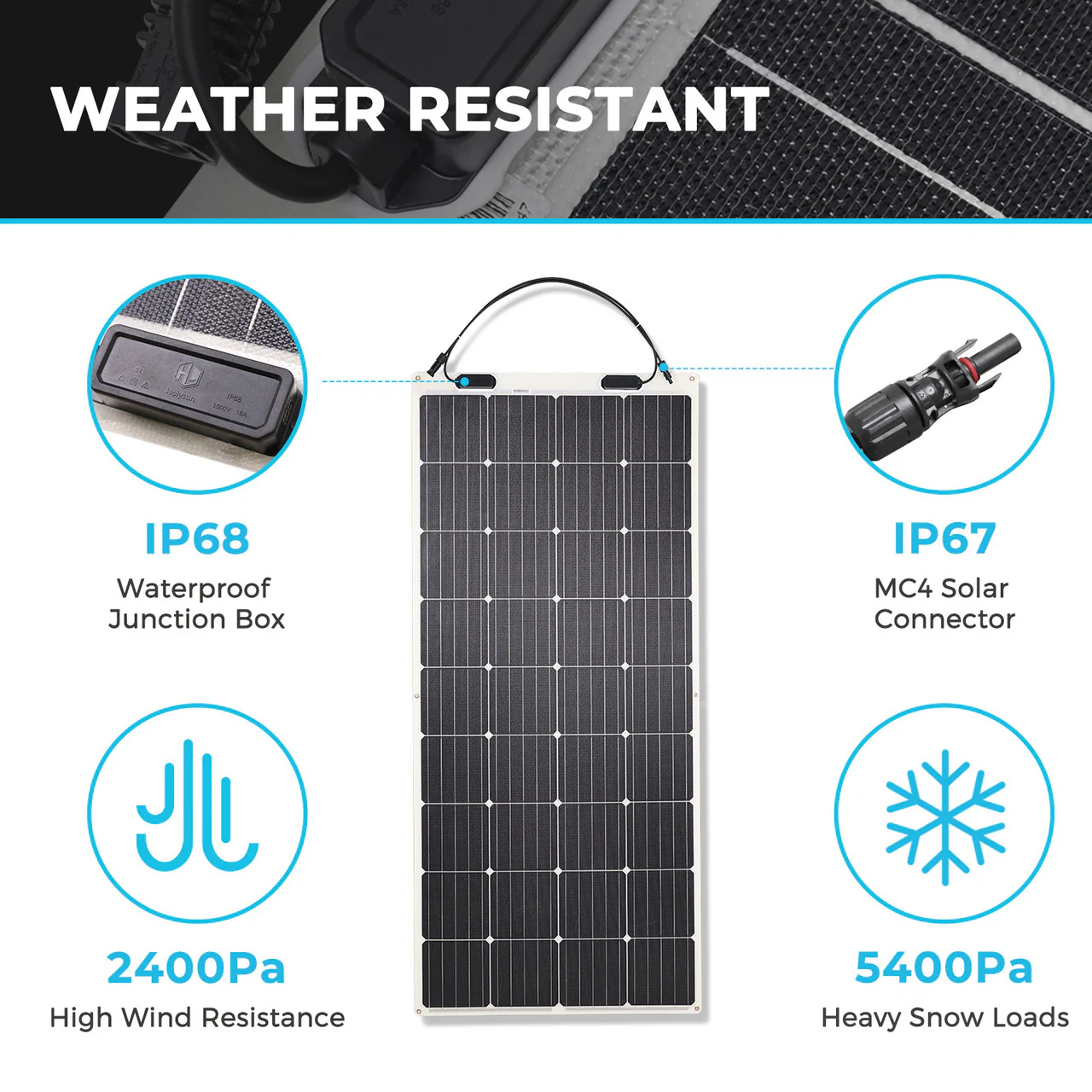

Adopts IP68 Junction Box and IP67 Solar Connector. Ensure a longer lifespan for outdoor and marine use.

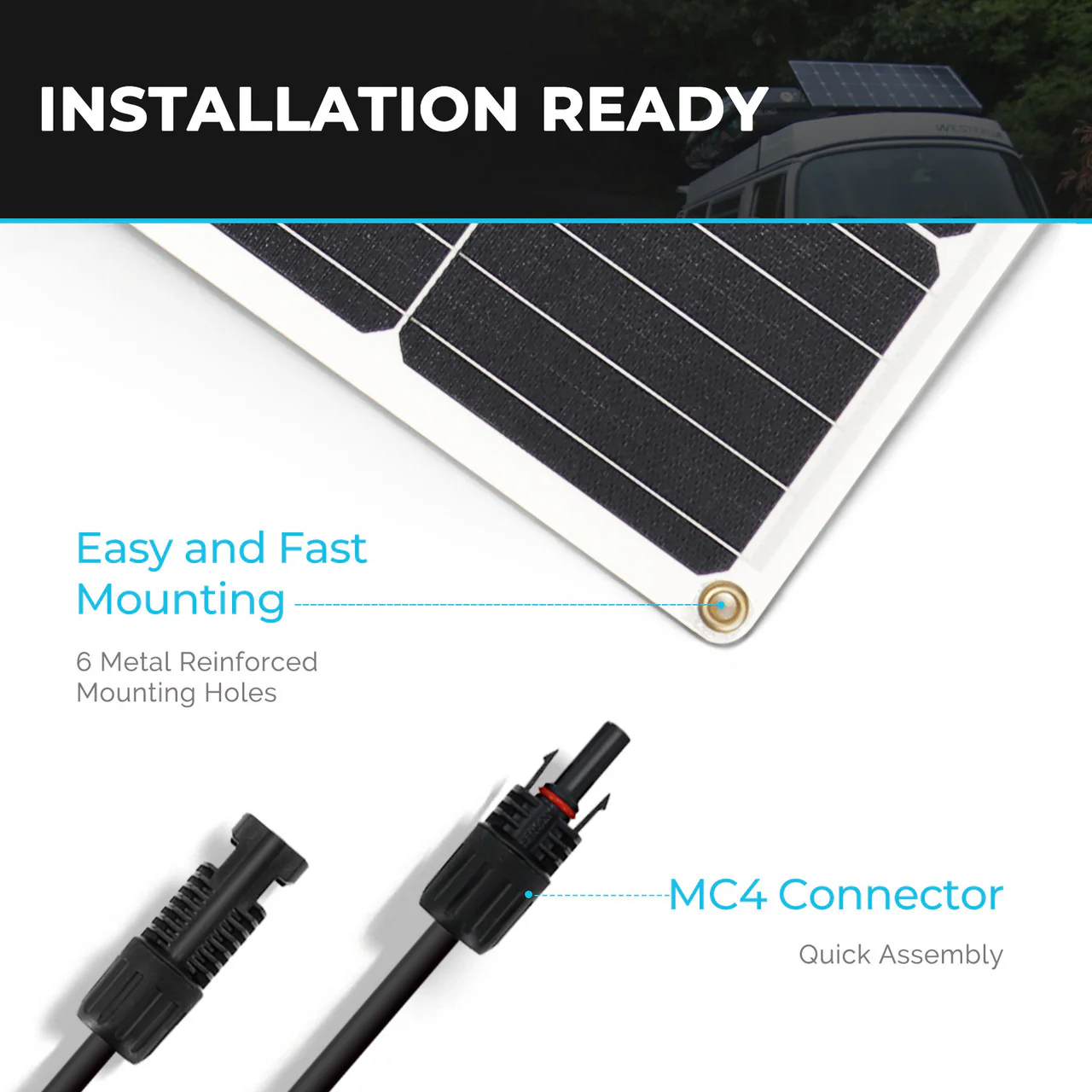

6 pre-drilled metal reinforced mounting holes, allowing for quick installation.
Withstands high winds (2400 Pa) and snow loads (5400Pa). Reliable in harsh outdoor environments, ensures longer lifespan. Fearless of extreme climates, backup your brave journey.
- If you have any questions regarding this product, please submit a ticket for troubleshooting assistance.
- More questions about your off-grid power system? Learn more from Renogy Learning Center!
Package Includes
|
Renogy 175W Flexible Solar Panel
1 x
|
| Built-in Components | |
|---|---|
| 175 Watt Flexible Monocrystalline Solar Panel | Output Cables: 12 AWG (2.30 ft) |
| Cell Type: Monocrystalline (6.17 x 6.17 in) | Number of Cells: 36 (4 x 9) |
| IP68 Rated Waterproof Junction Box | IP67 Rated Waterproof Solar Connectors |
| Specifications | |
|---|---|
| Maximum Power at STC: 175W | Module Efficiency: 17.3% |
| Optimum Operating Voltage (Vmp): 19.5V | Open-Circuit Voltage (Voc): 23.9V |
| Optimum Operating Current (Imp): 8.89A | Short-Circuit Current (Isc): 9.50 A |
| Operating Temperature: -40°F to 185°F (-40ºC to +85ºC) | Maximum Series Fuse Rating: 15A |
| Maximum System Voltage: 600V DC (UL) | Certifications: CE, ISO |
| Weight: 6.2 lbs (2.8 kg) | Dimensions: 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm) |
| Material and workmanship warranty: 5 years | Performance Warranty: 5-year 90% output warranty & material and workmanship warranty |
1.What do I need to complete my off-grid solar power system ?
2. Why is my solar panel under producing ?

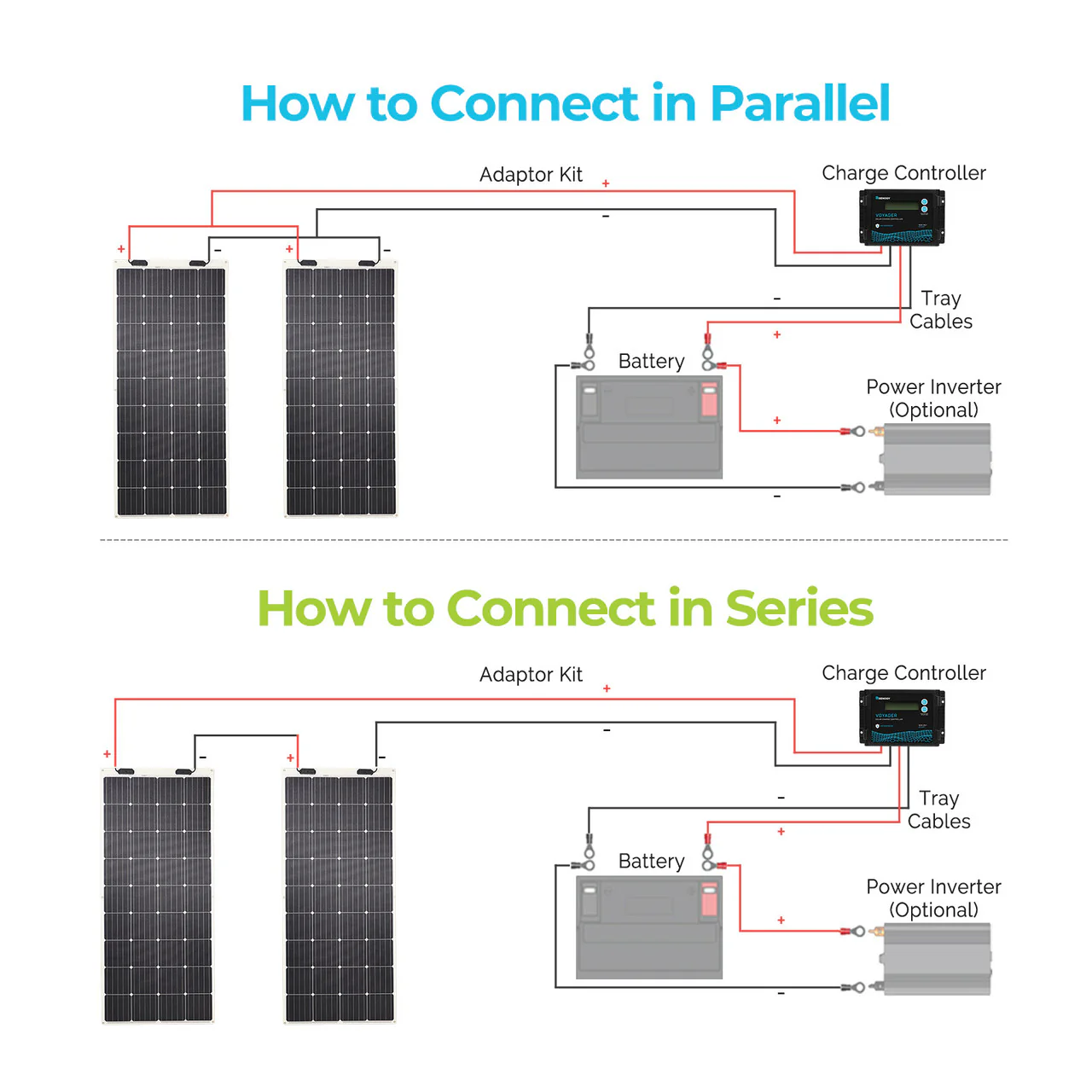

3. How should I connect solar panels in my electrical circuit (series vs parallel)
4. How many solar panels do I need ?
5. Can I walk on flexible solar panels?
6. How to clean solar panels?
 |
 |
